Understand Your Roof: A Simple Diagram Explaining Every Part
When it comes to home maintenance, your roof plays a crucial role in protecting everything underneath it. However, when roofers start talking about soffits, fascia, and flashing, it’s easy to feel overwhelmed. Many homeowners struggle to keep up with repair quotes or replacement discussions due to the terminology.
But don’t worry, we’ve got your back. This guide will break down every part of your roof with a simple, clear anatomy of a roof diagram. By the end, you’ll understand what each component does, how they work together, and why they matter. Whether you’re planning repairs, considering a replacement, or just want to be more informed, this is for you.
The Structural Foundation: What Holds Your Roof Up
The roof begins with a sturdy framework that supports everything else. These hidden components form the backbone of your entire roofing system.

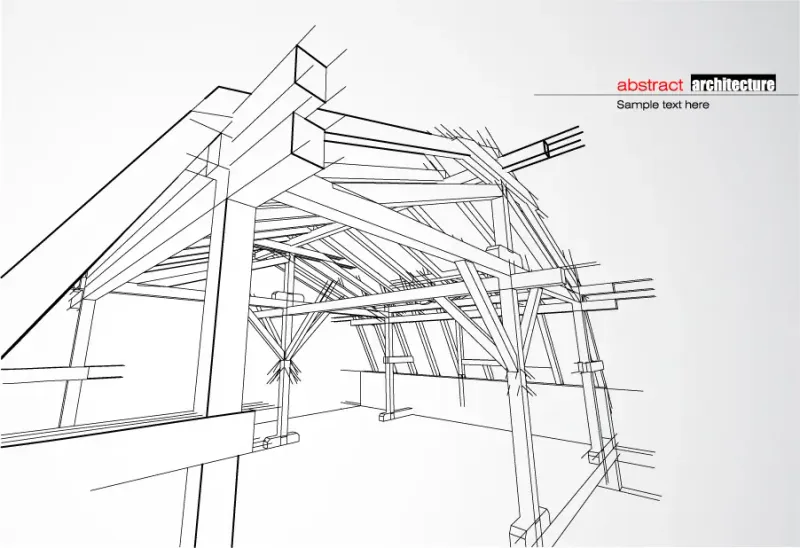

Trusses and Rafters: Your Roof’s Framework
At the core of your roof’s structure are either trusses or rafters. These components form the primary support system that holds everything else in place.
- Trusses: Pre-manufactured triangular wooden structures that span the entire width of your home.
- Rafters: Individual sloped wooden beams that extend from the ridge (peak) of the roof down to the exterior walls.
Both systems determine the pitch and shape of your roof, and which roof style names apply to your home. Common styles include gable, hip, mansard, and gambrel, each with distinct advantages for different climates and architectural styles.
Roof Decking: The Solid Base
The decking (sometimes called sheathing) is attached directly to the trusses or rafters. This continuous wooden surface, typically made of plywood or oriented strand board (OSB), provides a nailable surface for the remaining roofing materials and distributes weight across the entire structure.
Protective Underlayment: The Hidden Shield
Before any shingles are installed, several protective layers are applied to the decking. These materials form a critical water-resistant barrier.
Ice and Water Shield: Extra Protection Where It Counts
This rubberized asphalt membrane is applied in vulnerable areas such as eaves, valleys, and around penetrations. It self-seals around nails and provides an extra barrier against water intrusion in areas prone to ice dams or heavy rain.
Felt or Synthetic Underlayment: The Secondary Barrier
Covering the entire deck, traditional felt (tar paper) or modern synthetic underlayment provides a backup water barrier. These materials create an additional layer of protection between your shingles and decking.
Exterior Coverings: What You See From the Street
The visible part of your roof is just one component of the system, but it’s crucial for both protection and curb appeal.
Shingles and Alternative Coverings
The outermost layer of your roof can be made from various materials:
- Asphalt Shingles: The most common type, coming in three-tab or architectural (dimensional) varieties
- Wood Shingles/Shakes: Natural wood options with a distinctive appearance
- Metal Panels or Shingles: Long-lasting materials in various forms and finishes
- Clay or Concrete Tiles: Durable options common in southwestern and Mediterranean-style homes
- Slate: Premium natural stone product known for exceptional longevity
The covering you choose affects not just appearance but also durability, energy efficiency, and maintenance requirements. If you’re considering a replacement, consulting with shingle repair specialists can help you understand the best options.
Ventilation System: Helping Your Roof Breathe
Proper airflow extends the life of your roofing materials and improves energy efficiency. The names of parts of a roof ventilation system include several components working together.
Ridge Vents: Release at the Top
These vents run along the roof’s peak and allow hot attic air to escape. They’re often designed to blend seamlessly with the roofline.
Soffit Vents: Intake from Below
Located beneath the roof overhang, these vents allow fresh air to enter the attic. This creates a continuous airflow when paired with ridge or other exhaust vents.
Box Vents and Power Vents: Additional Exhaust Options
Box vents (also called static vents) are installed over holes cut in the roof to allow hot air to escape. Power vents use electricity to actively pull air out of the attic, often with thermostats that activate them when needed.
Flashing: Critical Waterproofing at Transitions
Flashing refers to thin pieces of metal or waterproof material installed to prevent water entry at joints and transitions in the roof. Understanding the various types of flashing is essential when discussing the names of roof parts with contractors.
Valley Flashing: Where Roof Sections Meet
Valleys—where two roof slopes come together—are particularly vulnerable to leaks. Valley flashing creates a channel to direct water down and off the roof rather than allowing it to pool or seep through.
Step Flashing: Wall Protection
When a roof slope meets a vertical wall, step flashing is installed in layers alongside the wall and under each course of shingles. This stepped approach ensures water runs over the roof covering rather than behind it.
Chimney and Pipe Flashing: Sealing Penetrations
Special flashing collars and assemblies are used around chimneys, vents, and pipes that penetrate the roof surface. These create watertight seals where the roof names of parts meet and where the roof covering has been interrupted.
Perimeter Components: The Roof’s Edge System
The roof edge system includes several visible elements that finish the roof while providing crucial protection. Understanding these components will help you identify potential problem areas during routine inspections.
Fascia: The Finishing Face Board
The fascia is the vertical board that runs along the lower edge of the roof, covering the ends of the rafters. It creates a finished appearance while providing a mounting surface for gutters.
Soffit: The Underside Protection
The soffit is the finished underside of the roof overhang. Besides improving appearance, it contains vents that allow fresh air into the attic ventilation system and prevent pests from accessing the roof structure.
Gutters and Downspouts: The Water Management System
Gutters collect water that runs off the roof, preventing it from damaging your foundation, siding, and landscaping. But what is a downspout? It’s the vertical pipe that carries water from the gutters down to the ground level. What is a downspout designed to do? It directs water away from your home’s foundation through extensions or underground drains.
Properly sized and installed gutters and downspouts are essential for protecting your home from water damage. Regular cleaning ensures they function effectively during heavy rainfall.
Understanding Your Roof as a Complete System
Looking at a roof diagram, you can see how each component plays a vital role in your roof’s overall performance. From the structural elements to the visible coverings, everything works together to protect your home.
Regular inspections by roof inspection experts can help identify potential issues before they become significant problems. They’ll check all these components, often measuring in roofing sq (100 square feet) to estimate the materials needed for repairs or replacements.
For homes with flat or low-slope roofs, different components may be used. These might include specialized membranes and methods to insulate flat roof surfaces. If you’re dealing with problems with this type of roof, understanding the cost of flat roof repair will help you budget appropriately.
Know Your Roof, Protect Your Investment
Your roof is more than just shingles—it’s a complex system with multiple layers and components working together to protect your home. At Brandon J Roofing, we believe an informed homeowner makes better decisions about their roofing needs. By understanding the names of parts of a roof and how they function together, you can communicate more effectively with contractors and make smarter maintenance decisions.
Whether you’re planning a full replacement or just need minor repairs, this knowledge helps you participate actively in the process. Our team of roofing professionals brings years of experience diagnosing and solving roofing problems across all these components. We’re committed to transparent communication and education, ensuring you understand exactly what’s happening with your roof.
